SWE-510 Liquid Cooled Energy Storage Cabinet

3.35MWh utility-grade battery storage system with advanced liquid cooling and integrated inverter chamber. Built for city power backup, industrial hubs, shopping malls, and energy-critical infrastructure.
Request a Quote

3.35MWh Liquid-Cooled Energy Storage System for Grid-Scale and Industrial Power Resilience

The SWE-510 is a high-capacity 3.35MWh liquid-cooled energy storage system engineered for serious grid-scale and commercial applications. Designed with modular inverter booster chambers and dual DC battery compartments, it delivers robust energy continuity, peak load support, and grid balancing—even in the most demanding power environments.

Ideal for backup power, solar storage, or hybrid grid applications, the SWE-510 offers low harmonic distortion (<3%), ultra-quiet operation (<80dB), and reliable control via CAN, RS485, or Ethernet. Whether you’re powering a city block or safeguarding a critical facility, the SWE-510 provides industrial-grade energy resilience in one fully integrated enclosure.

City Power Back-up

Industrial Estates
Supermarkets
Data Centres, Hospitals

Inverter Parameters

Transformer: 3500kVA 10kV/35kV Aux Transformer: 690/400-380-220V 120kVA

Storage Parameters

Total Fixed Power: 3.35MW
DC Voltage Range: 1000~1500V
Running Noise: 80dB (1 m Distance)

SWE-510

Liquid Cooled
Dimensions (WxDxH):
6400x3000x2000mm

Secure your power, cut peak costs, and meet public energy targets—all in one box.

  • Emergency and load-balancing power for hospitals, data centres, or council sites
  • Store cheap/solar energy for use during peak or grid downtime
  • Low noise, safe operation (<80dB at 1m) for urban or public settings
  • 10kV/35kV voltage capacity for serious infrastructure compatibility
  • Operates in ambient temps from −20°C to +60°C

A future-ready energy system for future-facing communities.

Big power needs a smart, scalable solution. The SWE-510 is it.

  • 3.35MWh storage ideal for manufacturing zones, logistics parks, and malls
  • Dual DC rooms and modular PCS converters for flexible system control
  • Handles high-load equipment with 1800V max DC and 1070V–1500V discharge
  • Keeps operations running with or without the grid
  • Reduces diesel reliance and supports ESG compliance

Energy security, commercial continuity, and long-term ROI in one cabinet.

The backbone for uninterrupted power—at industrial scale.

  • 3.35MW fixed power capacity with precision control (±2%)
  • 10kV/35kV rated voltage and high-output inverter boosters
  • Smart control via Shenghong PCS modules (2x)
  • Auxiliary transformers, internal cooling, and gas fire suppression built-in
  • Compact footprint: 6800×3000×3000mm (inverter room), 6400×3000×3000mm (battery room)

Deploy it at national grid nodes, critical installations, or energy-forward campuses.

SWE-510 Liquid Cooled Energy Storage Cabinet​

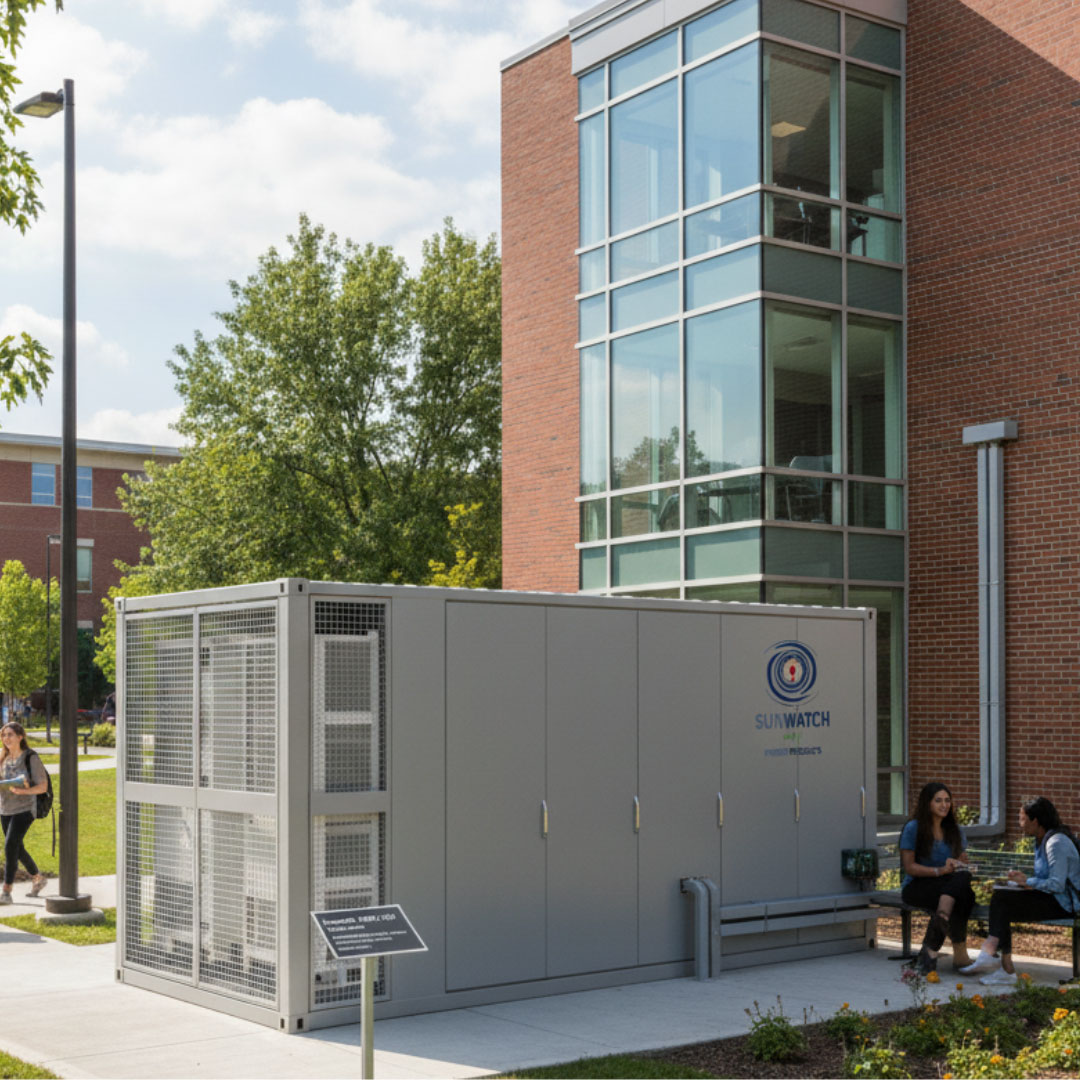

SWE-510-NW-1080X1080c

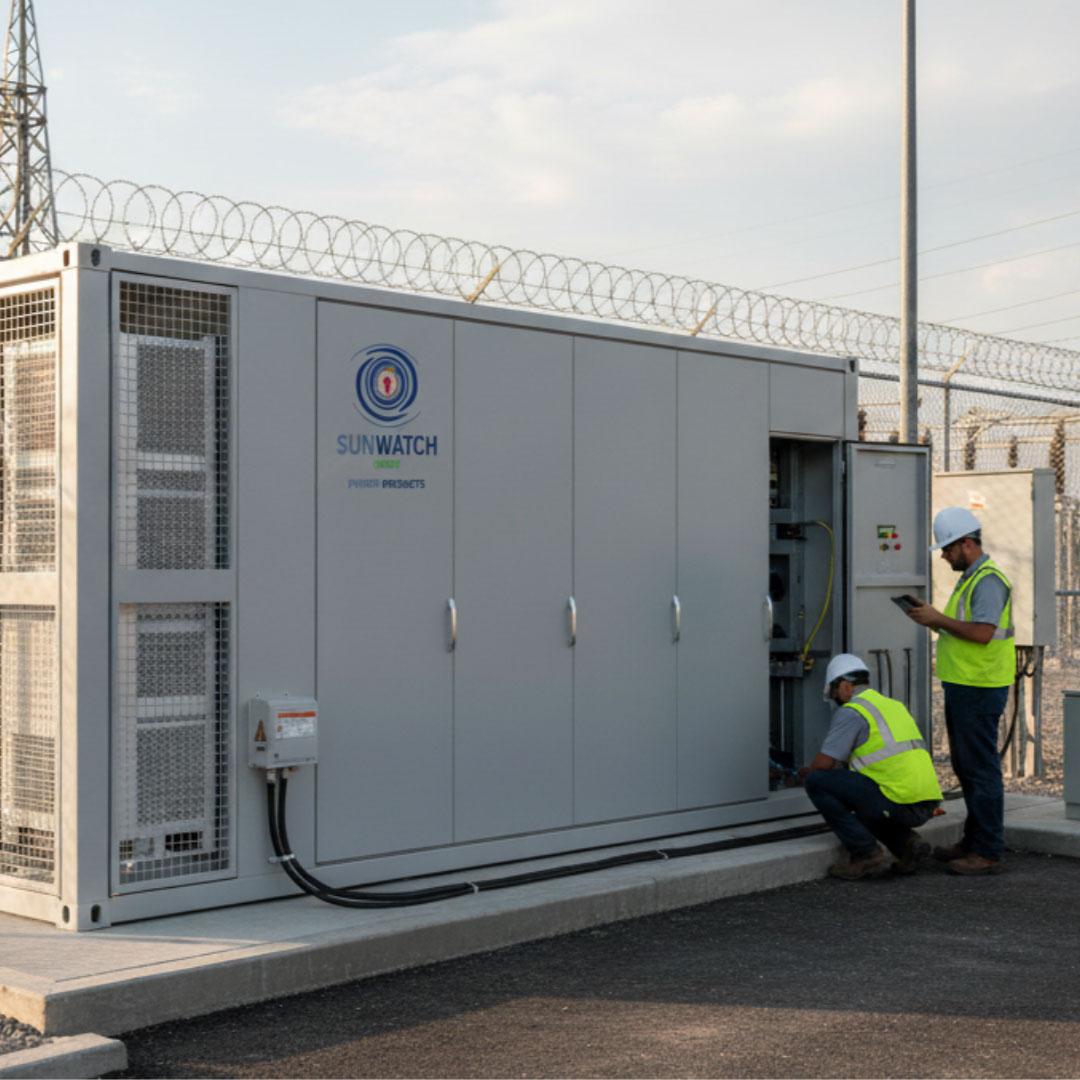

SWE-510 Battery Storage Cabinet

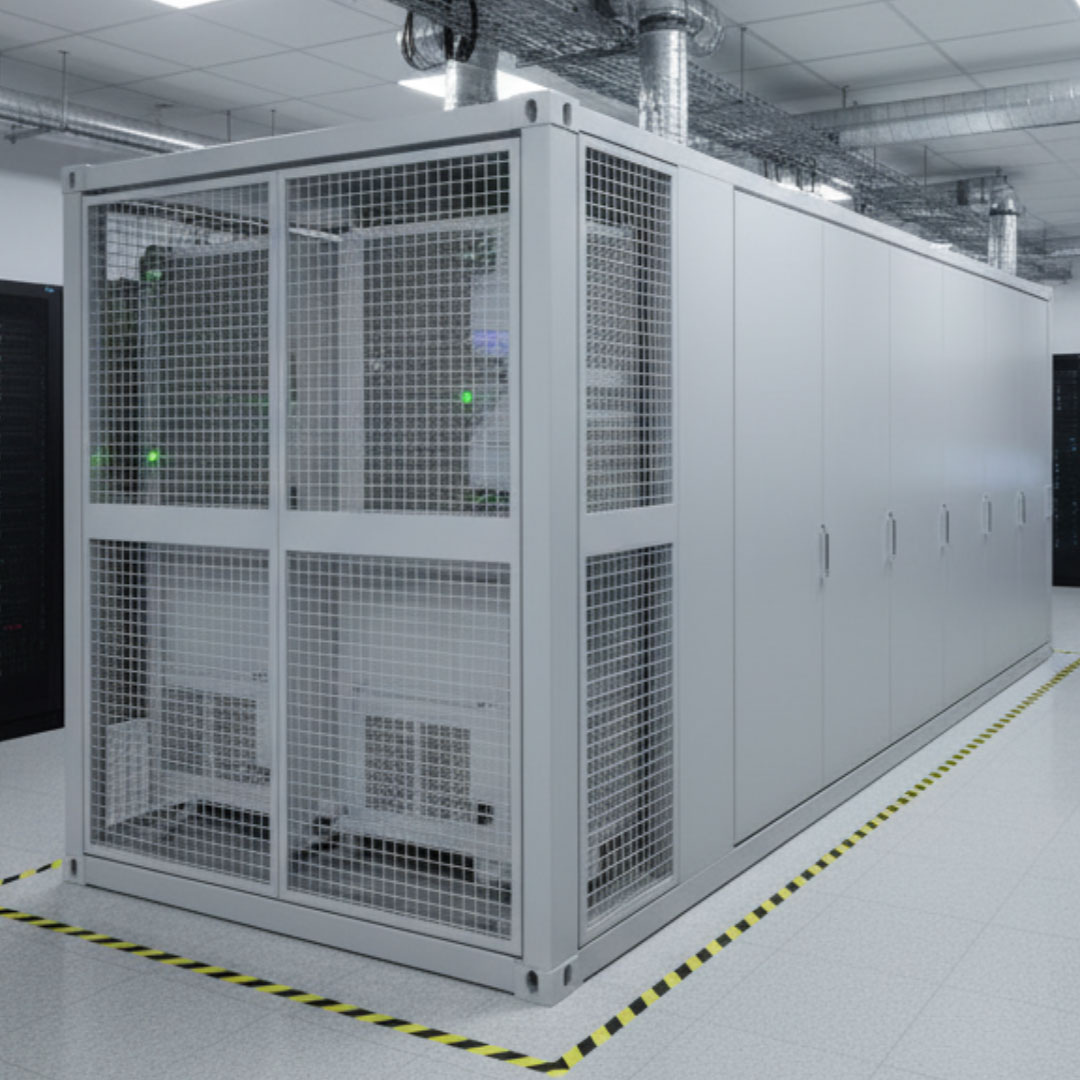

SWE-510-NW-1080X1080-Data-Centre

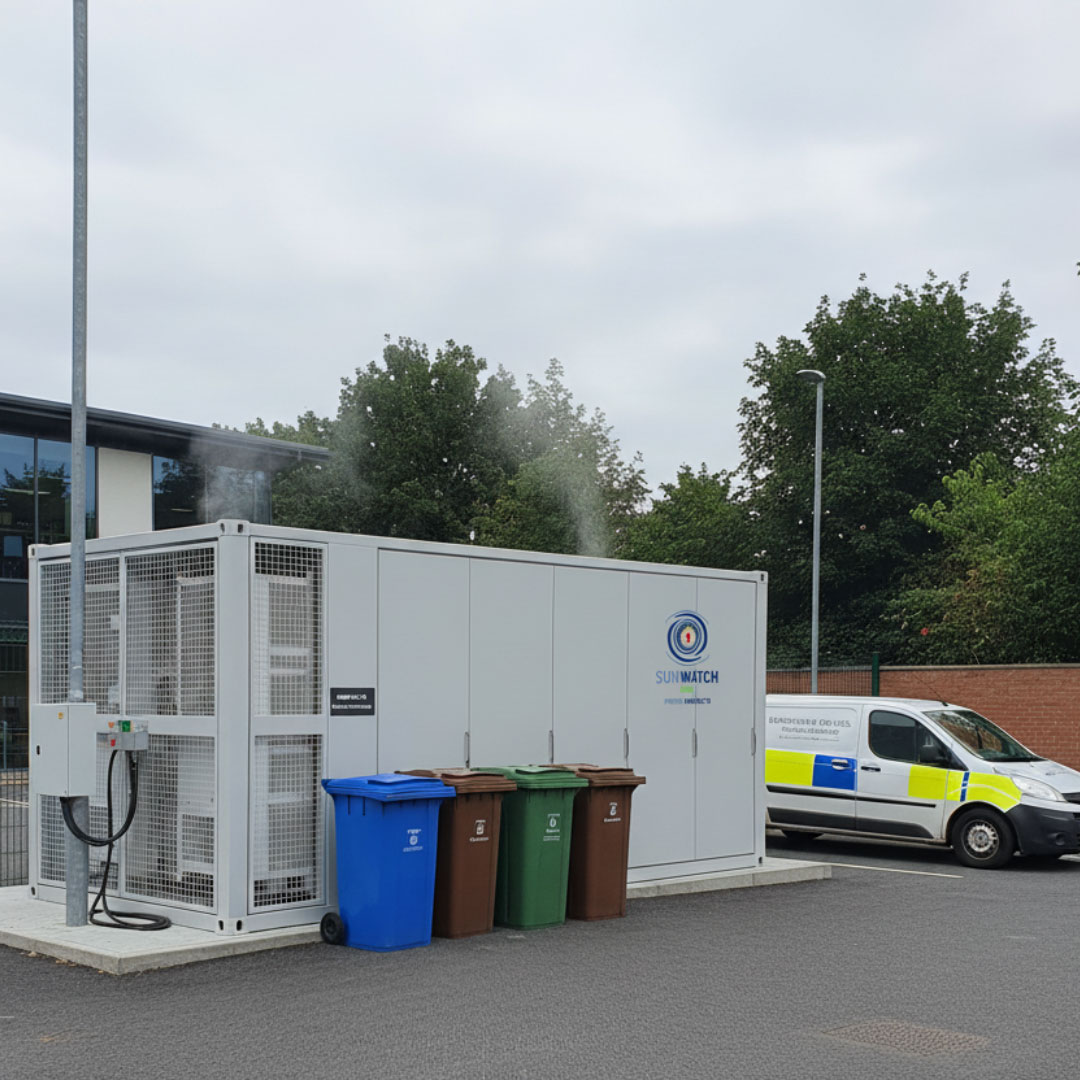

SWE-510-NW-1080X1080-Local-Council
